Description

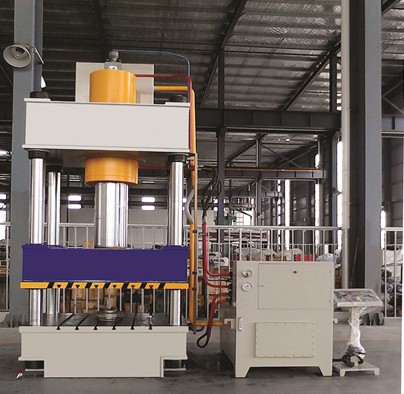

HYDRAULIC 4
COLUMN PRESS MACHINE
Performance:
Computer optimized design, three beam four-column structure, simple, economical and practical; Hydraulic controlled elements adopts Cartridge Valves integrated systems, reliable action, long service life, small hydraulic impact, reducing the connection piping and leakage points; the machine with independent power and electric systems, and adopts PLC and button control, can be restructured and semi-automatic operation. Electrical control system of an independent, reliable, intuitive movements, maintenance convenience; the use of centralized control button, with adjustments, double hands kinds of single-cycle mode of operation. Can be scheduled to process, two kinds of pressure forming process, and has security features such as calendar time; work pressure, need to travel in accordance with the provisions of Technology adjustable. Working pressure of the machine, sliding speed range of travel requirements can be adjusted in accordance with process; and pressure to complete the molding process will be two way process. Molding pressure in the suppression of the process, the pressure with automatic return and delayed action. This series of hydraulic metal materials for the main application of the tensile, bending, flanging, cold extrusion, stamping and other crafts, also applies to correction, press-fit, powder products, plastic products, as well as the suppression of molding insulation material.
Parameter Data：
|
No |
Item |
Unit |
YH32-200T |
|
|
1 |
Rated pressure |
KN |
2000 |
|
|
2 |
Knock-out pressure |
KN |
400 |
|
|
3 |
Max.hydraulic working pressure |
MPa |
25 |
|
|
4 |
Stroke of slide |
mm |
700 |
|
|
5 |
Stroke of knock-out stroke |
mm |
250 |
|
|
6 |
Max slide open height |
mm |
1100 |
|
|
7 |
Speed of slide |
Fast down |
mm/s |
100 |
|
Press |
mm/s |
10-15 |
||
|
Return |
mm/s |
70 |
||
|
8 |
Effective area of table |
L-R |
mm |
1000 |
|
F-B |
mm |
900 |
||
|
9 |
Motor |
KW |
15 |
|
